• Microchip Laser Module 200μJ
  • 1535nm laser is one of the solid-state laser series provided by ERDI, which is based on Er:Glass and Co:Spinel composite crystals. This excellent erbium laser utilizes mature bonding and packaging technologies, hence it can also be referred to as a 1535 nm micro-laser or 1535 nm microchip laser.
  • 1535nm laser is one of the solid-state laser series provided by ERDI, which is based on Er:Glass and Co:Spinel composite crystals. This excellent erbium laser utilizes mature bonding and packaging technologies, hence it can also be referred to as a 1535 nm micro-laser or 1535 nm microchip laser.
  • 1535nm laser is one of the solid-state laser series provided by ERDI, which is based on Er:Glass and Co:Spinel composite crystals. This excellent erbium laser utilizes mature bonding and packaging technologies, hence it can also be referred to as a 1535 nm micro-laser or 1535 nm microchip laser.

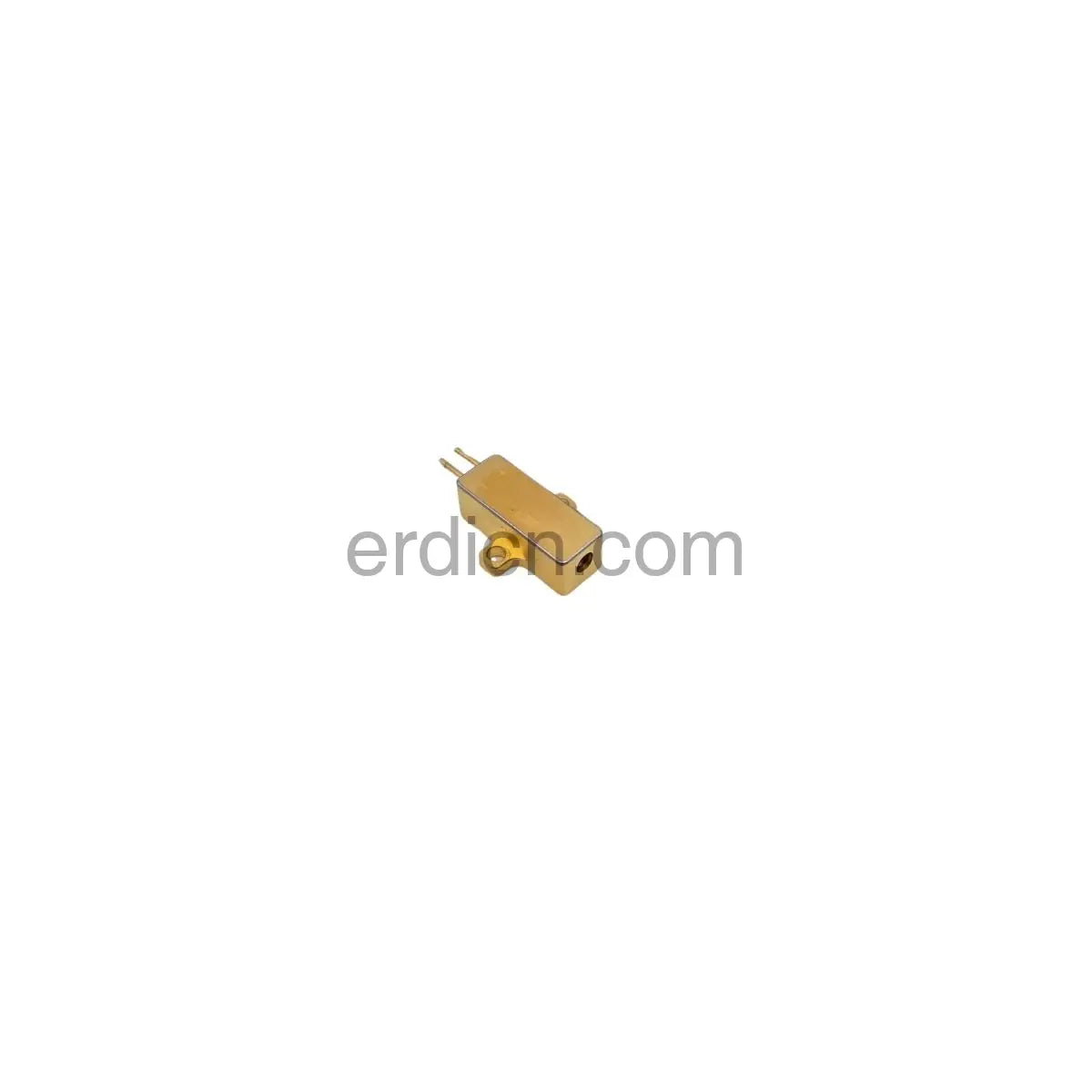

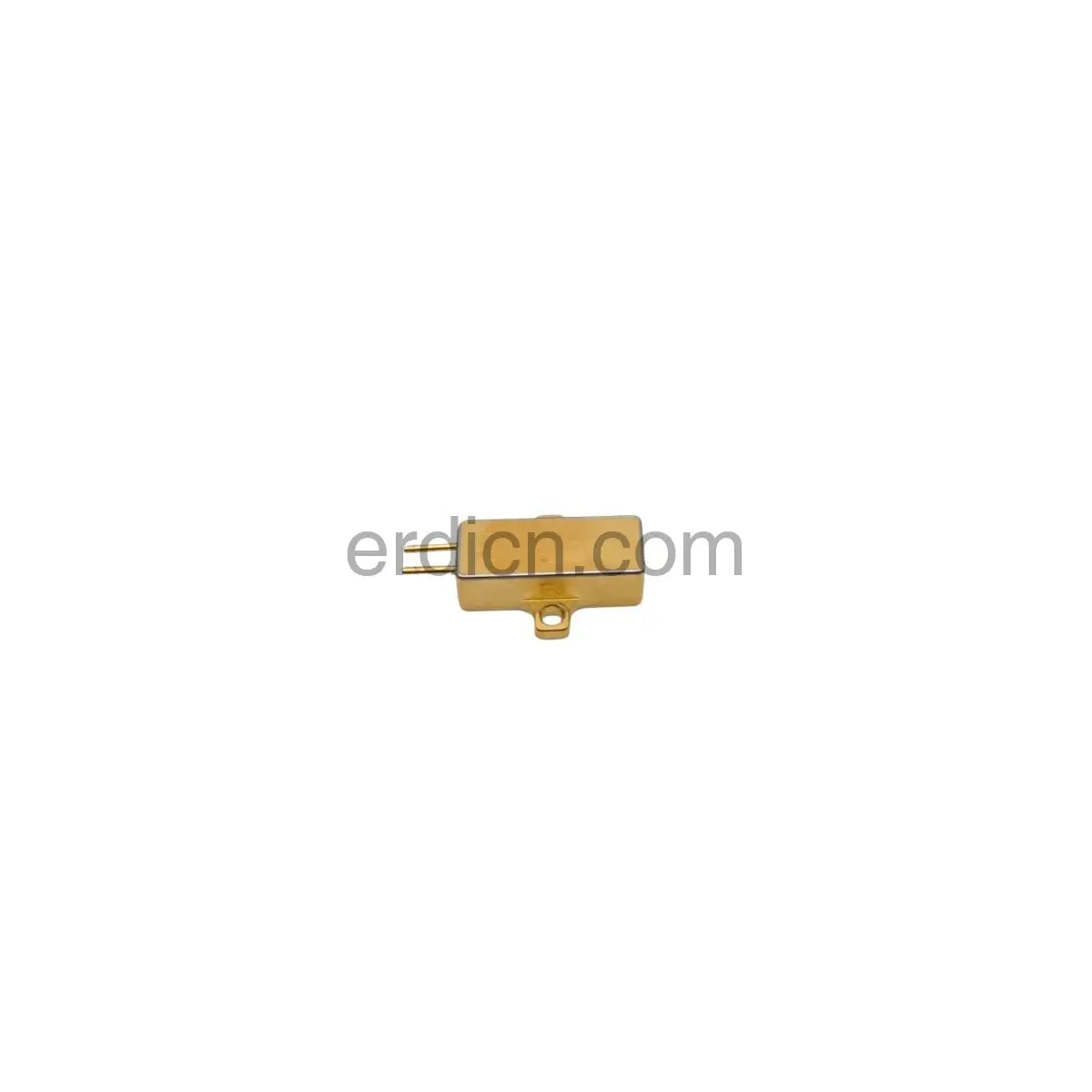

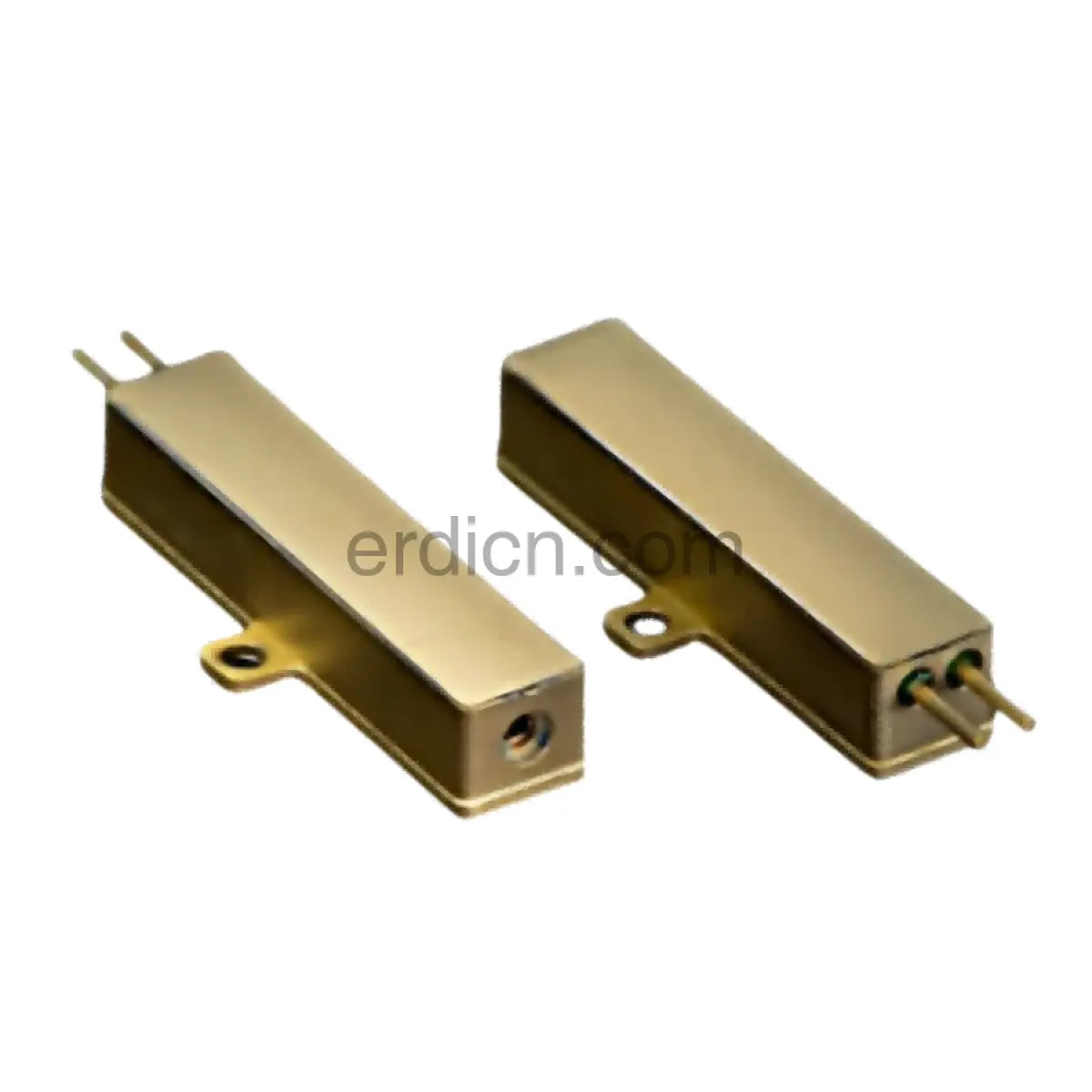

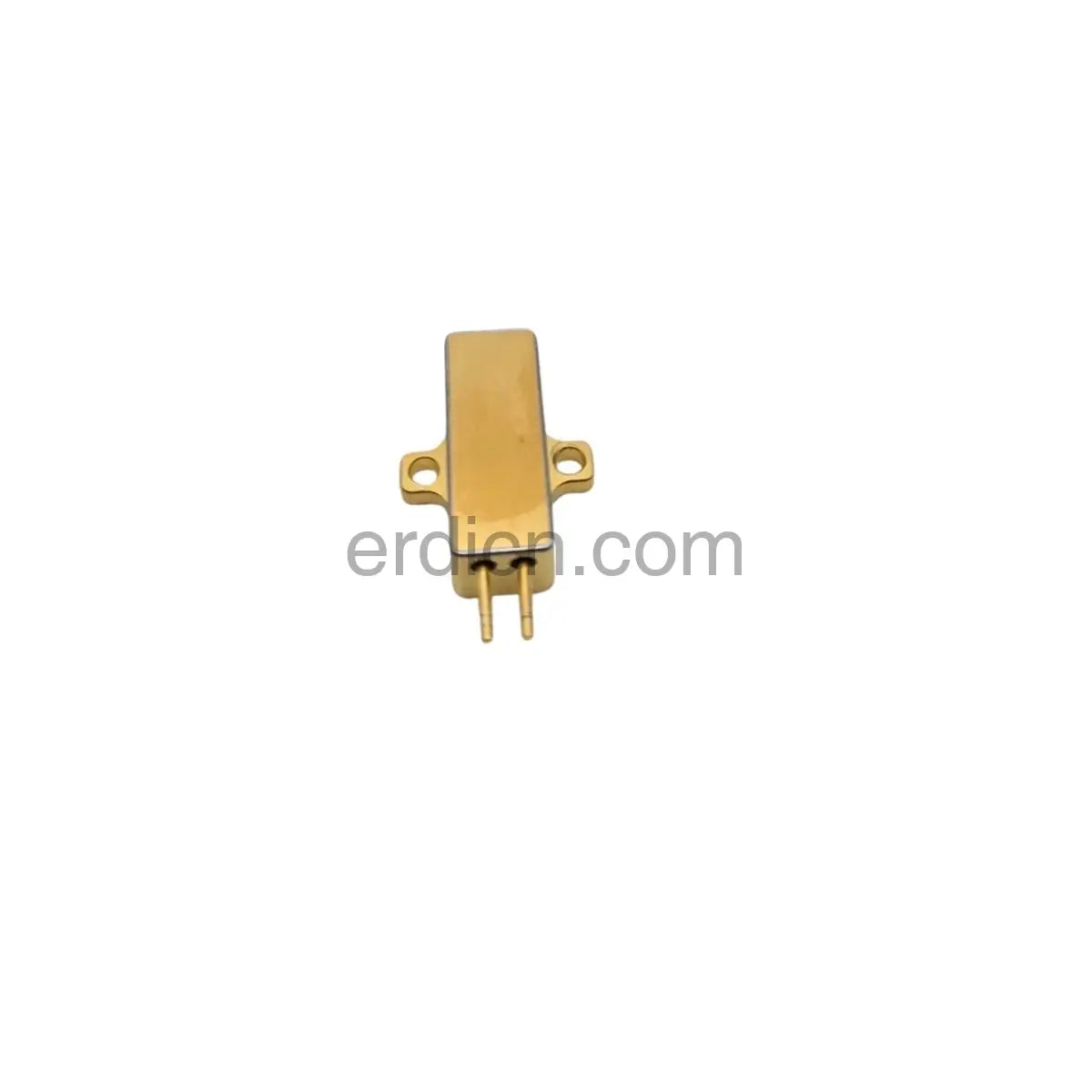

1535nm Microchip Laser Module-Erbium Glass DPSS Laser 200μJ

1535nm Microchip Laser Module-Erbium Glass DPSS Laser 200μJ

Model: ER200-01
The ER200 is a compact, high-performance 1535 nm laser diode, classified as Class 1 eyesafe, making it ideal for applications requiring user safety. It delivers ≥200 µJ pulse energy with a short 4 ns pulse width and operates at 1–10 Hz repetition rates, ensuring precise and stable performance. The laser features a high-quality TEM0000​ beam with 10 mrad divergence, suitable for applications demanding tight beam control. Designed for rugged environments, it operates in extreme temperatures (-45 °C to +65 °C) and withstands 1500 G impact and 20 G vibration. Its small size (25×8×7 mm) and lightweight (8 g) make it perfect for integration into portable LIDAR systems, short-range rangefinders, industrial sensors, and scientific instrumentation. With a long lifespan (>5 million pulses), the ER200 offers reliability for defense, automation, and environmental monitoring applications.

ERDI's 1535nm DPSS laser operates within the critical wavelengths of both the eye safety window and the atmospheric window. This eye-safe DPSS laser delivers pulse energy ≥200μJ, enabling a ranging capability of 3-8 kilometers.

Beyond its core ranging function, this versatile DPSS laser is widely employed across multiple fields, including:

  • Laser target indication

  • Laser ranging

  • Laser lighting

  • Solid-state laser rangefinders

  • Laser radar (LiDAR) systems

  • Laser medical applications

  • Optical fiber communication

Laser Wavelength

1535 nm

Eyesafe

Class 1

Pulse energy

 ≥200 μJ

Laser Pulse width

4 ns

Pulse repetition rate

1~10 Hz

Pulse stability

10%

Raw Beam Diameter

0.2 mm

Beam divergence angle

10 mrad

Beam Mode

TEM00

Operating temperature

-45 ℃~+65 ℃

Storage temperature

-55 ℃~+85 ℃

Impact

1500 G, 0.5 ms

Vibration

20~2000 Hz/20 G

Life span

＞5 million times

Dimension (mm)

25x8x7

weight

8 g

Voltage

2 V

electric current

12 A

Drive pulse width

 ≥2 ms
2D Dimension Image
Download Product Instructions
